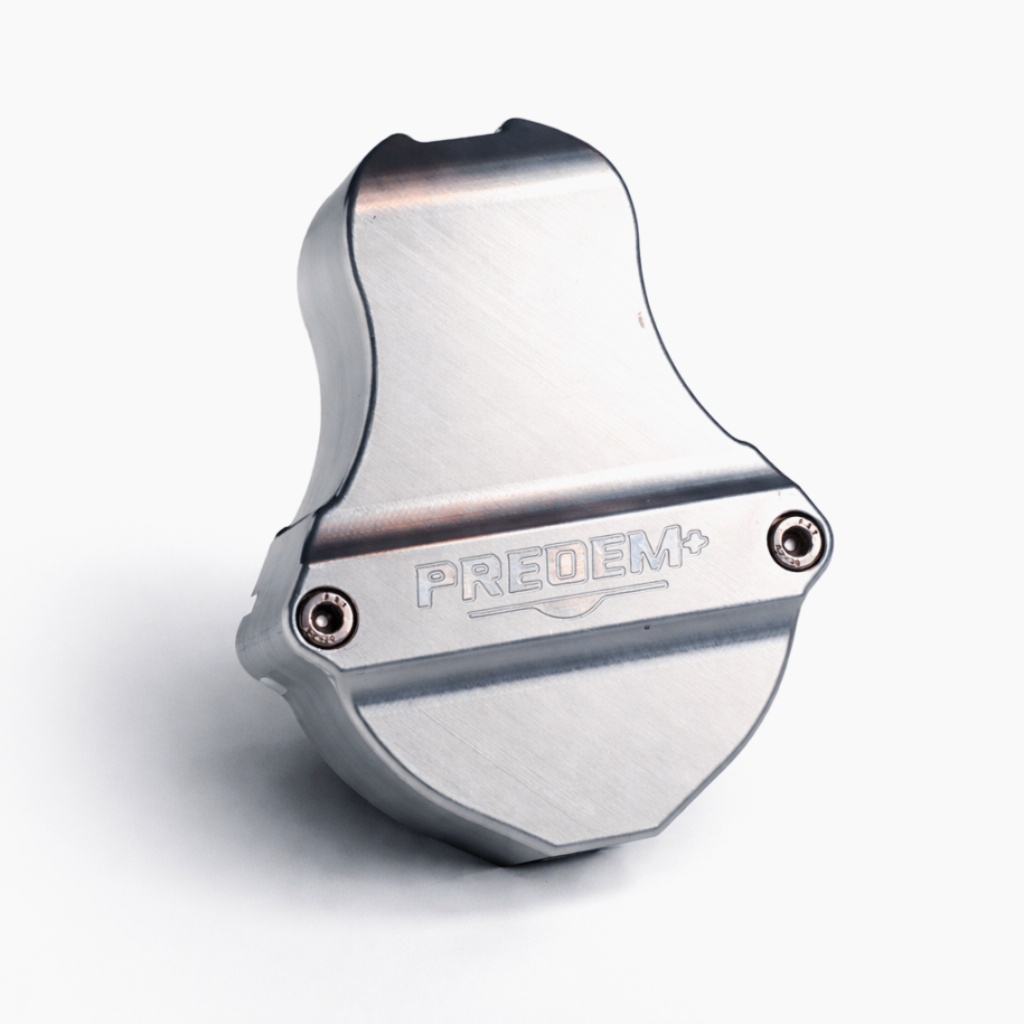

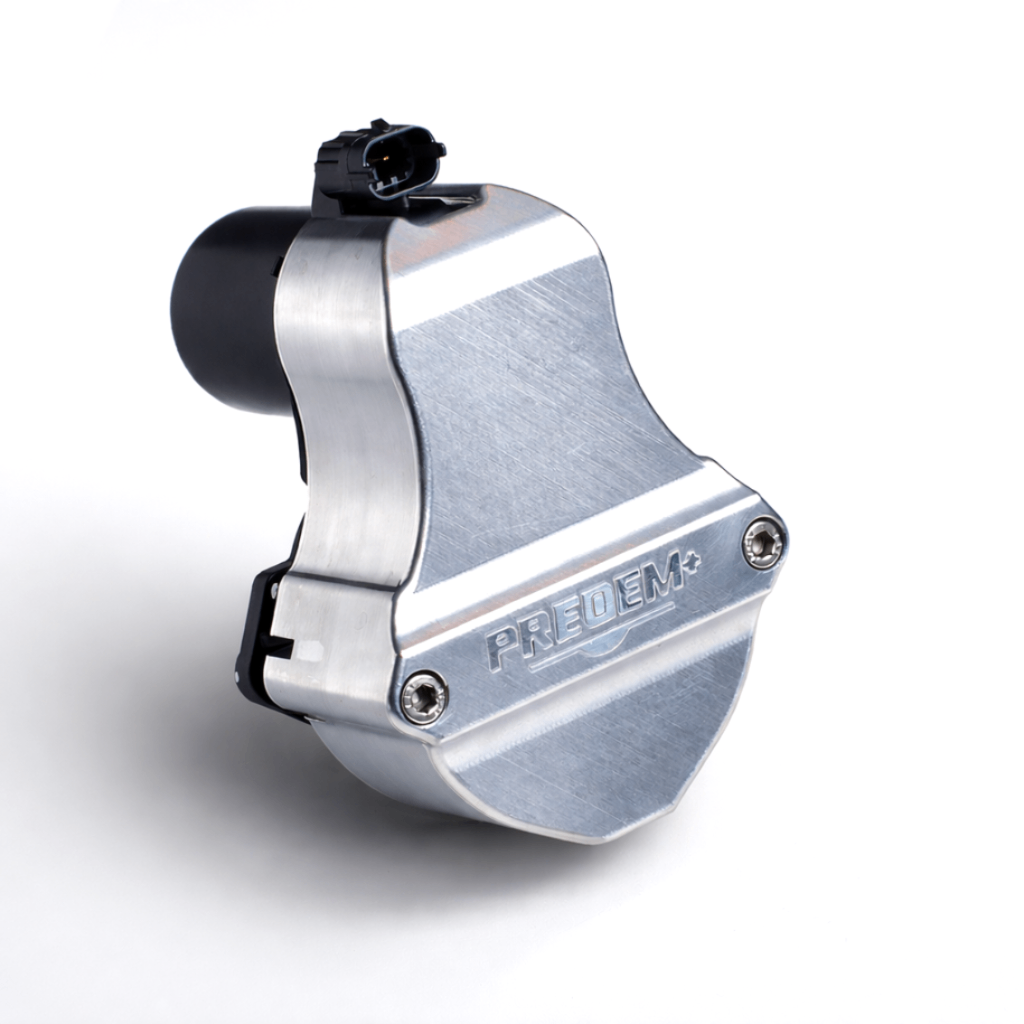

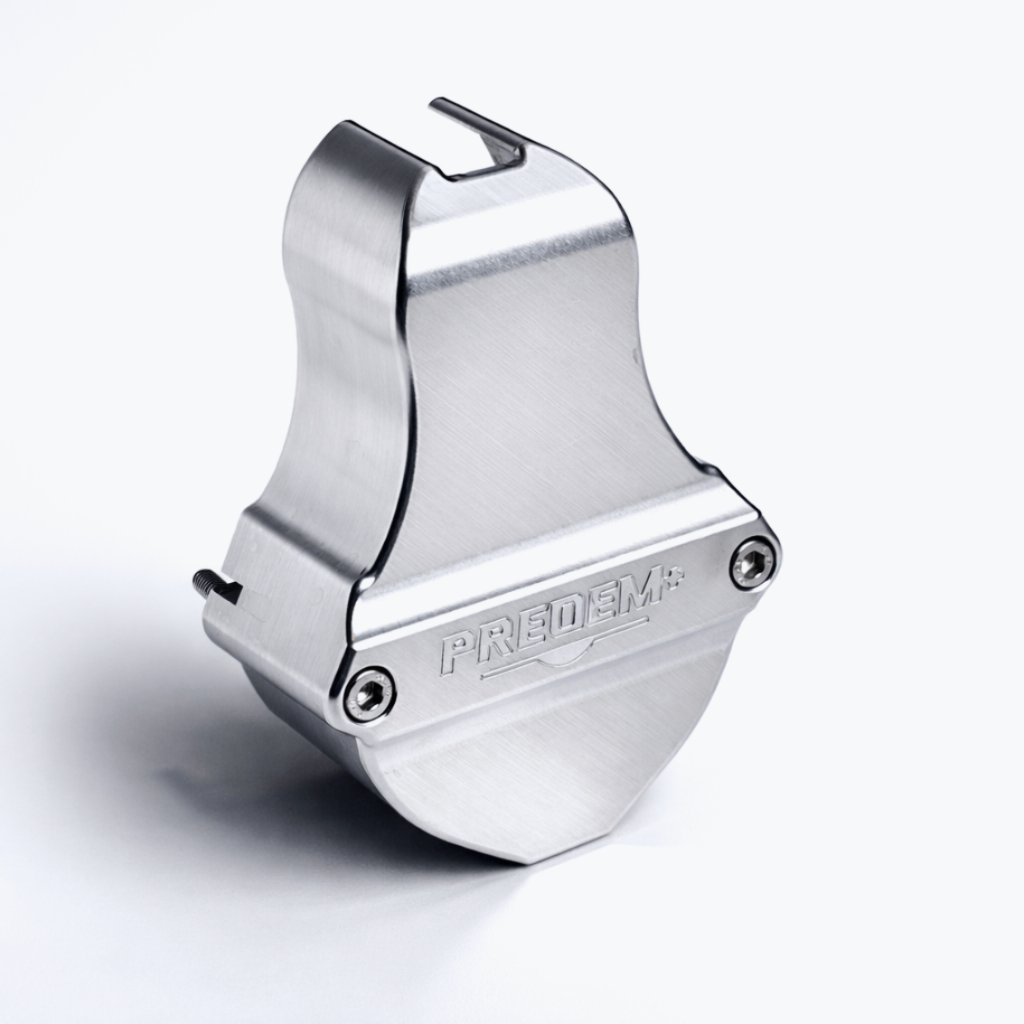

Ford Transit Electronic Parking Brake Shield — Both Sides
Options
Quality Guaranteed
Industrial grade manufacturing standards.
Fast Shipping
Reliable delivery to your fleet.
Compatibility
2019 - Present Ford Transit 150, 250, 350 w/ Electronic Parking Brakes
Material
Aluminium 6065
Finish
Corrosion-Resistant Anodized
What's Included
Two electronic parking brake shields (driver and passenger side), 2x bolts per shield
Only need one side?
The electronic parking brake shield is also available as a single side.
Why It's Needed
Essential protection for your fleet's vulnerable components.
Extended Lifespan
Significantly extends the life of parking brake components by shielding them from harmful elements.
Cost-Effective
Prevent expensive repairs. Replacing an actuator can cost significantly more than this preventative shield.
Why Ford Transit Vans Need Electronic Parking Brake Shield (2020–Present)
The electronic parking brake actuators on modern Ford Transit vans are exposed to the elements, mounted low on the rear axle. This positioning makes them highly susceptible to damage from road debris, salt, water, and ice. Our shield provides a robust physical barrier.
Common Causes of Actuator Damage
- Impact from rocks and road debris thrown by tires.
- Corrosion buildup from road salt and moisture accumulation.
- Ice packing during winter conditions causing mechanical stress.
Why Factory Protection Is Often Not Enough
Factory safeguards are often minimal or made of brittle plastic that cracks over time. The PREOEM+ shield is engineered from Aluminium 6065, offering superior strength and durability compared to stock solutions.
The Value of Component-Specific Protection
Generic guards don't fit. Our shield is laser-scanned and precision-engineered specifically for the Ford Transit rear axle assembly, ensuring zero interference with suspension or brake operation.
Ideal Use Cases
- High-mileage delivery fleets.
- Construction vehicles operating on gravel.
- Shuttle vans in winter climates.
Installation Guide
Preparation
Ensure vehicle is on a level surface. Lift rear of vehicle safely if needed for better access.
Locate Actuator
Identify the electronic parking brake actuator on the rear brake caliper.
Position Shield
Align the PREOEM+ shield over the actuator housing, matching the mounting holes.
Secure Bolts
Insert the two included bolts and hand-tighten to ensure proper thread engagement.
Final Torque
Tighten bolts to 18 ft-lbs (25 Nm). Verify shield clears all moving parts.
FAQ
Warranty
Installation or use of this product may affect or void the vehicle manufacturer's factory warranty. This product is covered by a one (1) year limited warranty against defects in materials and workmanship. Damage caused by misuse, abuse, improper installation, modification, or normal wear and tear is not covered.
Disclaimer: Professional installation is recommended. PREOEM+ is not liable for damages resulting from improper installation.
